Lochee Car Upper Saloon |
![](Upper%20Deck%20Frame%202.JPG) |

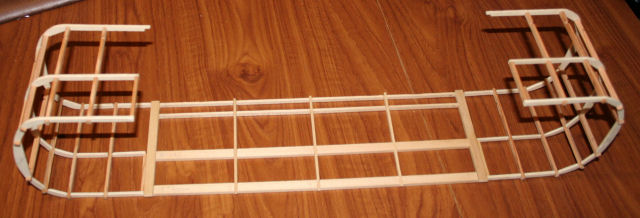

This the upper deck
frame under construction. The sides are made the same as the lower saloon
side frames. |

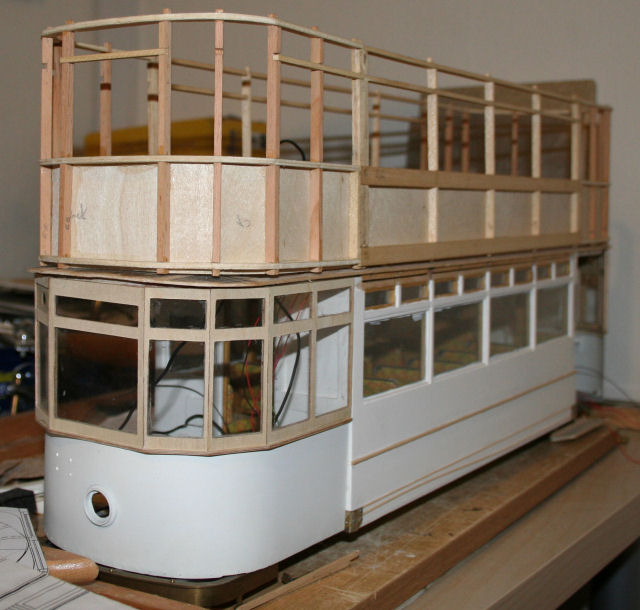

The saloon interior
side panels are fitted and the upper saloon test fitted to the lower saloon. |
![](Upper%20Deck1.JPG) |
![](upper%20deck%202.JPG) |
Uprights were added to the front and balsa
inserts used to support the panelling. |

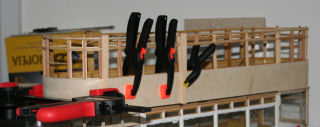

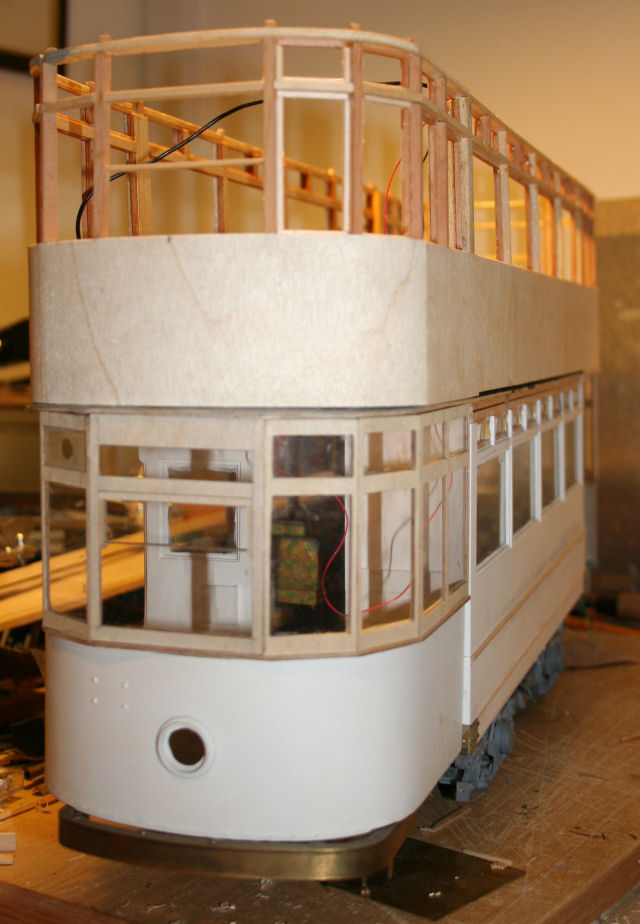

I wasn't happy with
the front windows, so I cut them out and rebuilt them. The front panelling
has been added using plenty of clamps to curve the 1/32 ply round the front. |
![](upper%20deck%20may%2031_2.JPG) |
![](clamping%20panels.JPG) |
|

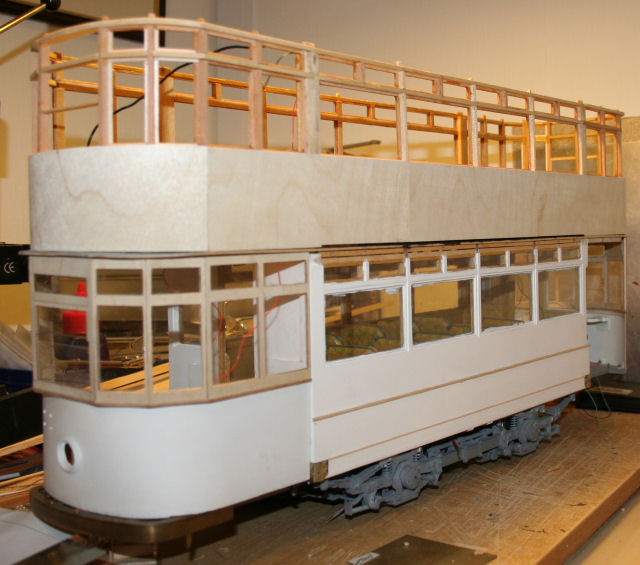

Side panelling added. |
![](Upper%20Deck%20may%2031_1.JPG) |
![](upper%20deck%20stair%20vestibules.JPG) |

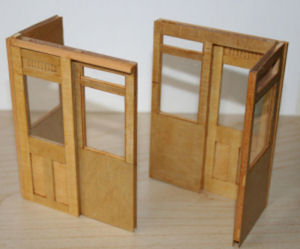

These are the stair vestibules. They still need
another panel. |

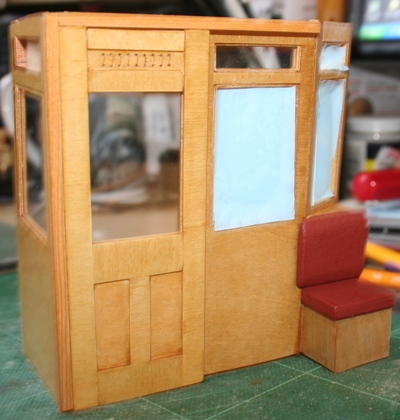

The side panel and end seat now added. |
![](vesitbule and seat small.JPG) |
![](vestibule test fit small.JPG) |

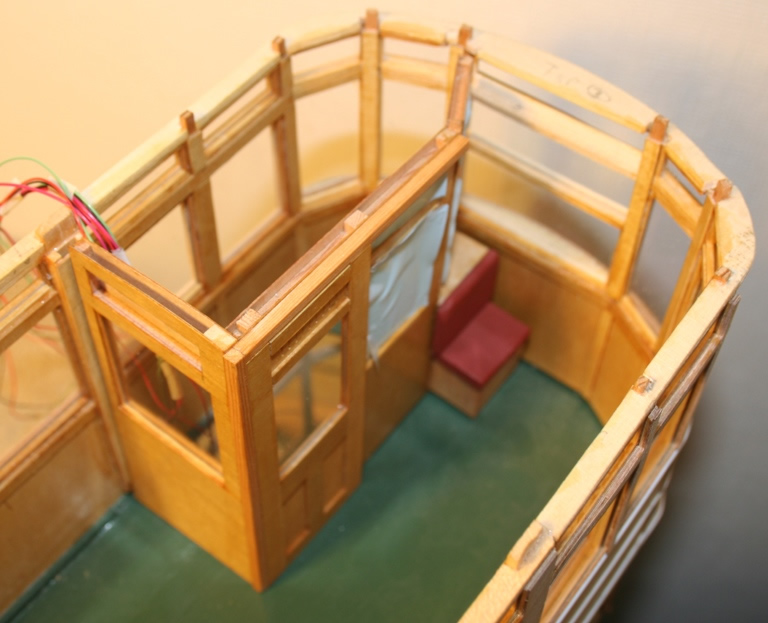

Test fitting. |

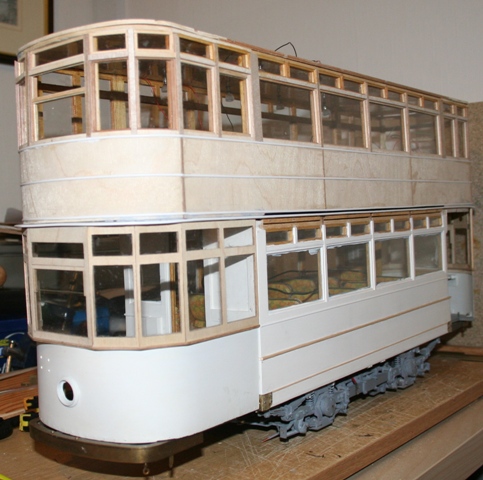

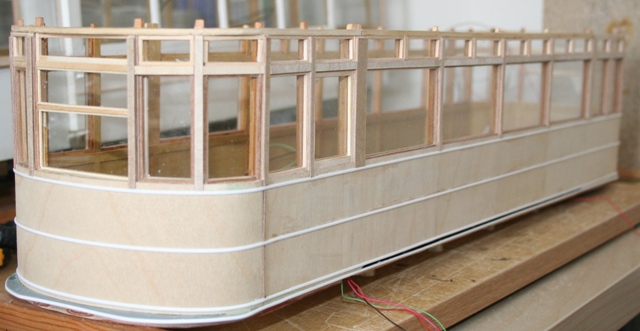

Upper Saloon glazed - all 60 panes indvidually cut from glass slides. A grinding stone is useful to get an exact fit. Extra panelling and beading added. |
![](Upper Deck Panels_1.JPG) |
![](upper deck glazed.JPG) |
|

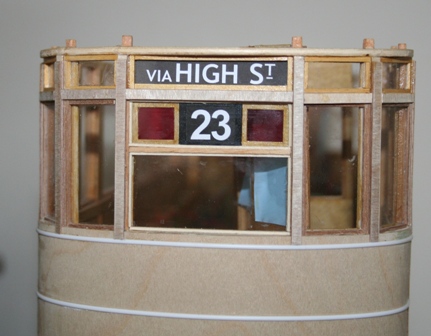

Upper saloon destination blinds in place. The lighting is next. |
![](upper deck destination.JPG) |
