A 3/4 inch Dundee
Lochee Car
Under-Construction
Follow the
construction of a Dundee Lochee Car in 3/4 inch scale. This may take some time,
but you can follow progress here. It is reckoned to take 800 hours to construct
a model in this scale. However, it is a very satisfying scale to model a tramcar
in. Patience is required, just take your time, help is available.
Plans can be obtained from
Terry Russell and the TLRS, parts can also be
obtained from the
TLRS and
Model Tramway
System . Look in the Tramway Modelling On-Line Reference, under UK manufacturers.
![](Lochee%20Side%20view%20new.jpg) |
![](Lochee%20Front%20View%20New.jpg)
|

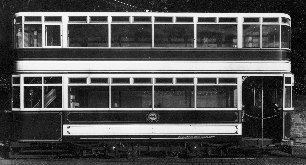

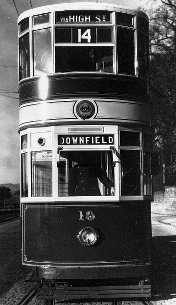

Here is a
picture of the tramcar when new in Dundee. It was one of a batch of ten
built by Brush Electrical Engineering Co. Ltd. in 1930 to a specification
of the Dundee Transport Department. The principle dimensions were as
follows:- |
Length over corner
pillars |
18ft 6ins |
Length over platforms |
30ft 5ins |
Length over fenders |
31ft 6ins |
Maximum Width |
7ft 2ins |
When they
were delivered the cars had trolley poles, but they were converted to bow
collectors within a few years of arriving. |
|
|
|
|
